ENJH(TB)-4503
| 概述 绝缘件采用阻燃聚碳酸酯， 导电片组合螺钉压接条形结构，额定工作电压600V，导线连接截面 0.75～25mm2 ，平板螺钉孔安装，特别适用于平板要求的控制设备电器中 使用。 |
 |
| 技术参数 |

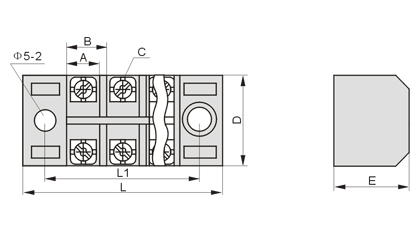

| 型号规格 | 电压电流 | 接线位数 | 尺寸(mm) | ||||||
| L | L1 | A | B | C | D | E | |||
| TB-1503 | 600V 15A |
3 | 46 | 35.5 | 7.5 | 9 | M3 | 22 | 17 |
| TB-1504 | 4 | 55 | 43.5 | 7.5 | 9 | M3 | 22 | 17 | |
| TB-1506 | 6 | 73 | 63 | 7.5 | 9 | M3 | 22 | 17 | |
| TB-1512 | 12 | 127 | 115 | 7.5 | 9 | M3 | 22 | 17 | |
| TB-2503 | 600V 25A |
3 | 50 | 44.5 | 10.5 | 12 | M4 | 30 | 20 |
| TB-2504 | 4 | 62.5 | 57 | 10.5 | 12 | M4 | 30 | 20 | |
| TB-2506 | 6 | 91 | 81.5 | 10.5 | 12 | M4 | 30 | 20 | |
| TB-2512 | 12 | 163 | 153 | 10.5 | 12 | M4 | 30 | 20 | |
| TB-3503 | 600V 35A |
3 | 50 | 40 | 10.5 | 12 | M4 | 30 | 20 |
| TB-3504 | 4 | 62.5 | 57 | 10.5 | 12 | M4 | 30 | 20 | |
| TB-3506 | 6 | 91 | 81.5 | 10.5 | 12 | M4 | 30 | 20 | |
| TB-3512 | 12 | 163 | 153 | 10.5 | 12 | M4 | 30 | 20 | |
| TB-4503 | 600V 45A |
3 | 10 | 60.5 | 15 | 15 | M5 | 38 | 23.5 |
| TB-4504 | 4 | 86 | 75.5 | 15 | 15 | M5 | 38 | 23.5 | |
| TB-4506 | 6 | 120.5 | 110 | 15 | 15 | M5 | 38 | 23.5 | |
| TB-603 | 600V 60A |
3 | 70.5 | 65.5 | 15.5 | 15.5 | M6 | 38 | 31 |
| TB-604 | 4 | 93.5 | 82.5 | 15.5 | 15.5 | M6 | 38 | 31 | |
| TB-606 | 6 | 129 | 118 | 15.5 | 15.5 | M6 | 38 | 31 | |
| TB(C)-1003 | 600V 100A |
3 | 86.5 | 75.5 | 22 | 22 | M6 | 43.5 | 35 |
| TB(C)-1004 | 4 | 108 | 96 | 22 | 22 | M6 | 4.35 | 35 | |
| TB(C)-1006 | 6 | 153 | 140 | 22 | 22 | 43.5 | 35 | ||
